Detailed shop drawings prepared for client and engineer approval — complete with dimensions, materials, and connection details.

Full fabrication-ready drawings for workshop production with all weld symbols, bolt patterns, and material callouts.

Site erection sequences and marked drawings to guide safe and efficient steel installation on-site.

Individual part drawings for every steel element — cut from the 3D model with full dimensions and finish notes.

Optimized DXF/DWG files ready for plasma, laser, or water-jet cutting machines — nested for minimal waste.

Machine-ready CNC files compatible with major cutting and drilling equipment brands for direct-to-machine production.

Precision & Speed

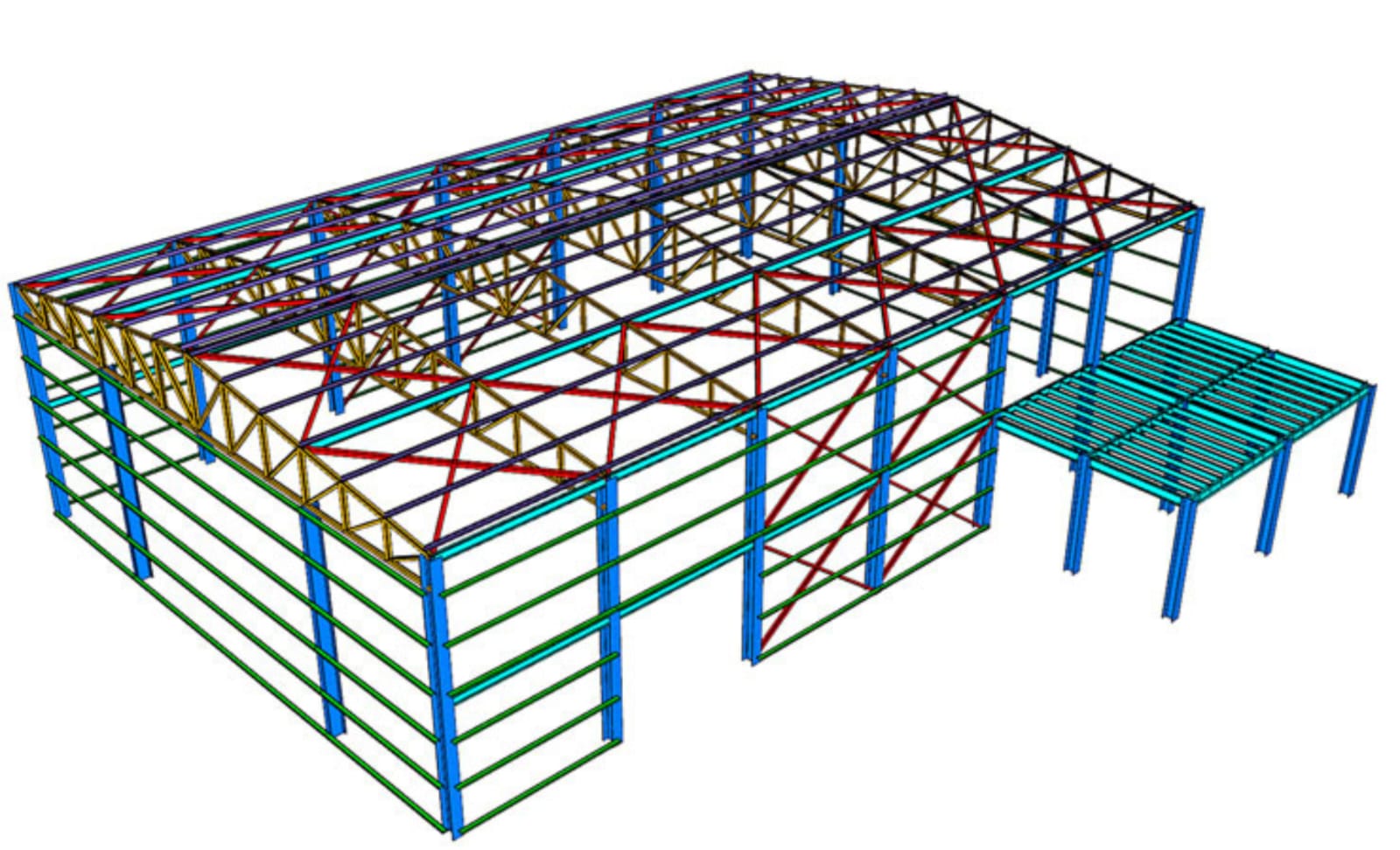

GTN delivered our warehouse drawings in record time. The CNC files were machine-ready from day one — zero corrections needed. Highly recommended for fabricators.

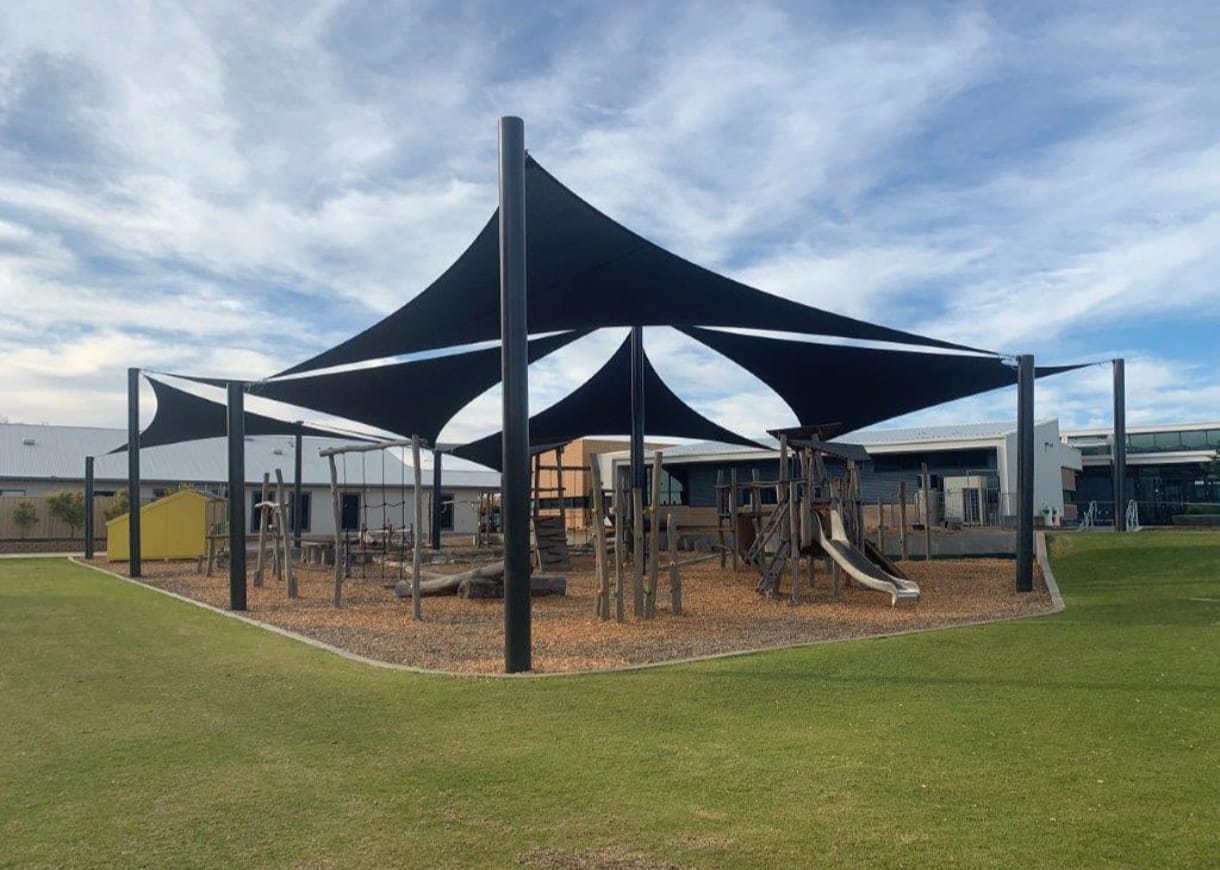

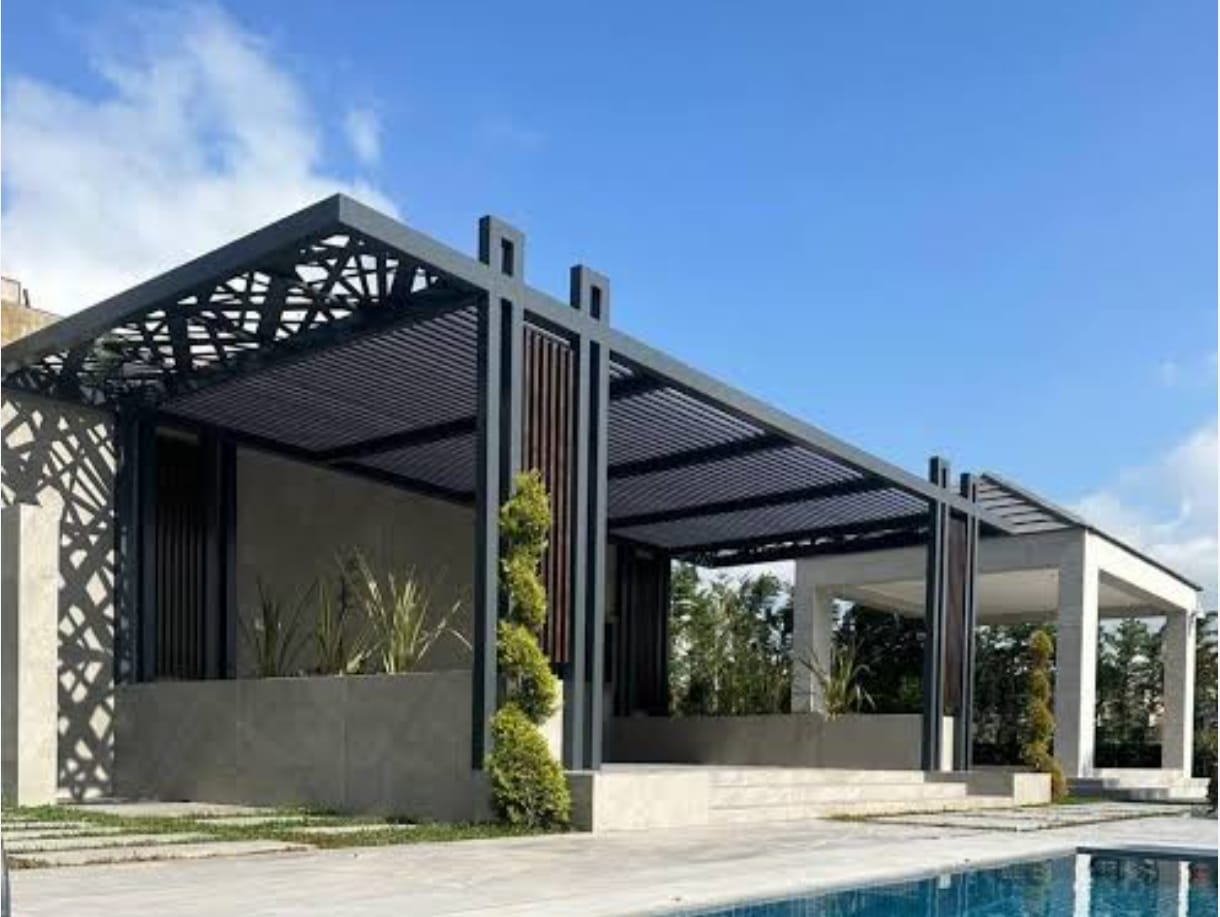

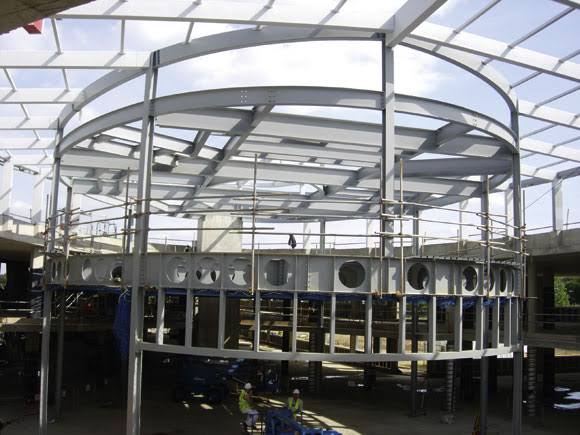

We've used GTN for multiple pergola and shade structure projects. Their 3D models and shop drawings are always accurate and clients love the visual presentations for approval.

Best value-for-money steel detailing service I've found. Fast turnaround, responsive team, and DXF files that cut perfectly without any rework. Will continue working with GTN.

Ready to start your steel structure project? Get a fast, no-obligation quote. We serve clients across India and UAE with reliable, professional detailing services.
